Cyclotron LB-20

Cyclotron LB-20

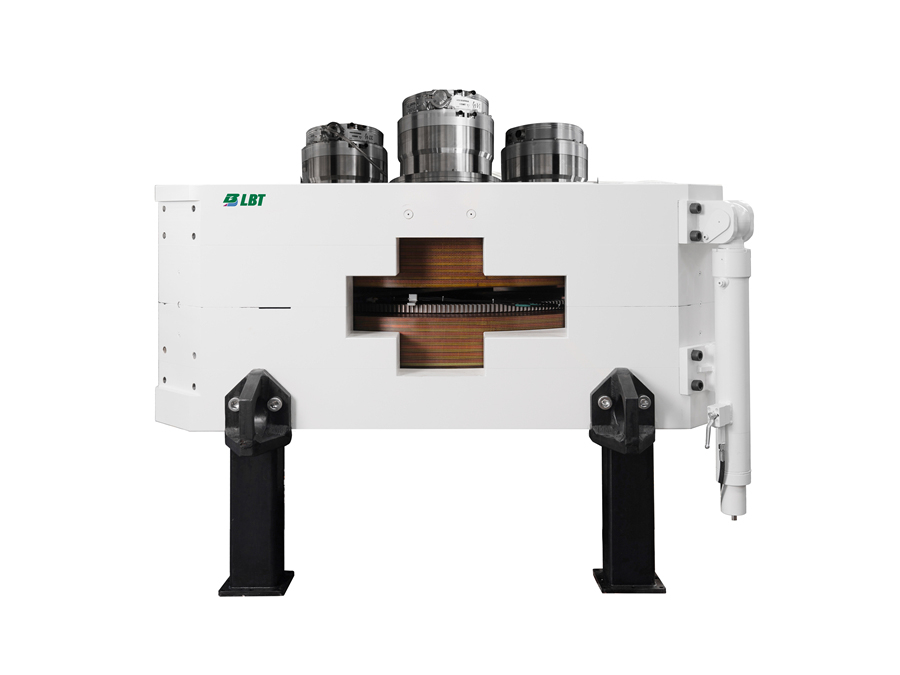

Cyclotron LB-20 (1).jpg

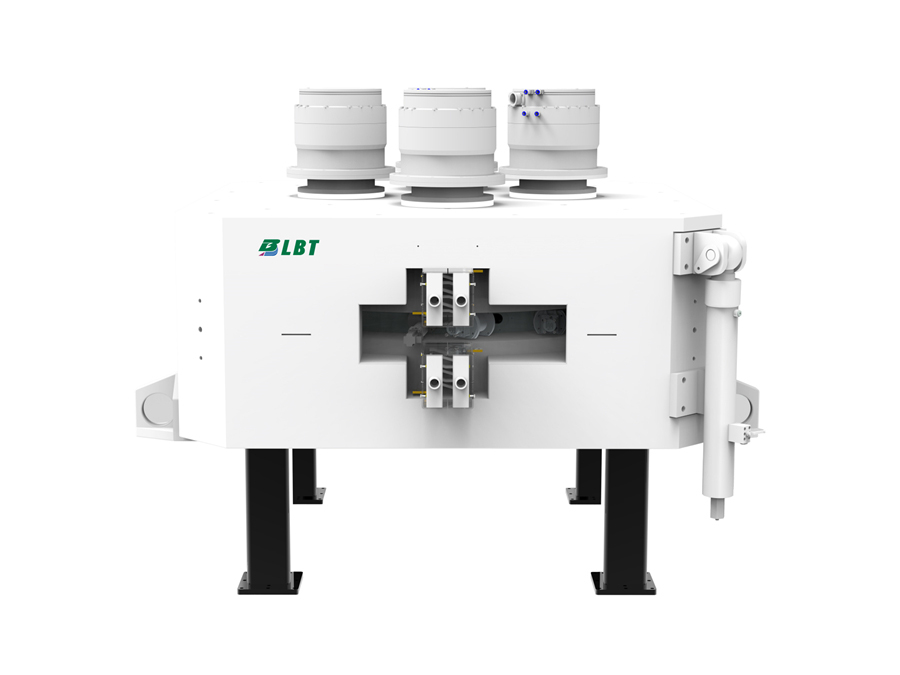

Cyclotron LB-20 (2).jpg

- Versatile All-in-One Solution

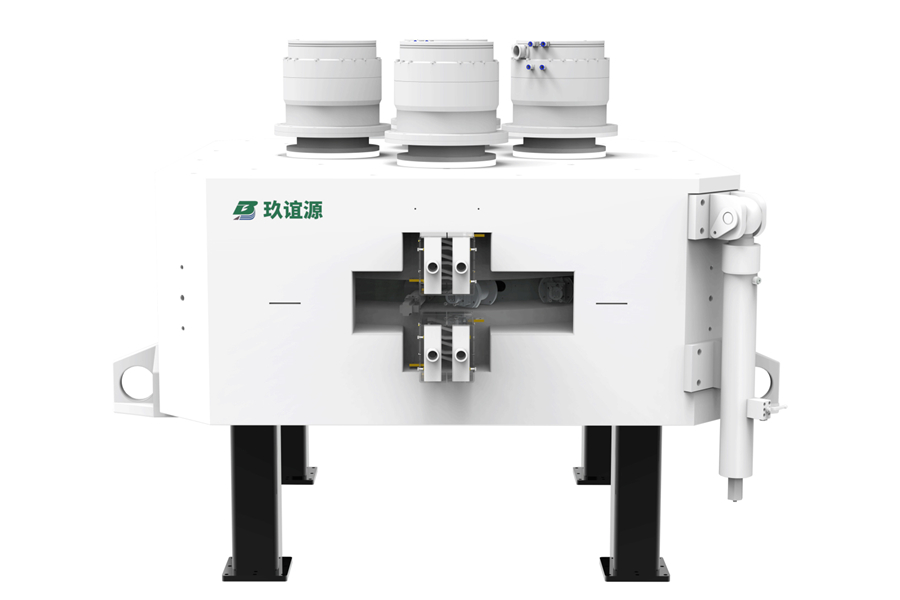

Cyclotron LB-20

  • Beam Energy: 20MeV
  • Target Positions: 8

The LB-20 medical cyclotron, with its comprehensive compatibility and outstanding performance, precisely covers diverse radionuclide application scenarios. It not only meets the clinical drug supply and research/education needs of large medical institutions, imaging centers, and research institutes but also solves the challenges of large-scale, multi-variety radionuclide production for radiopharmaceutical manufacturers. It is a core nuclear medicine device integrating practicality, flexibility, and foresight.Its core highlights include:
• Outstanding Yield: Consistently delivers stable, industry-leading levels of medical radionuclides, providing solid assurance for the continuity of clinical diagnosis/treatment and the reliability of research experiments, eliminating business interruptions due to fluctuations in nuclide supply.
• Comprehensive Coverage: Fully covers both positron and single-photon diagnostic radionuclides, seamlessly supporting nuclear medicine clinical diagnosis, therapy evaluation, and cutting-edge research projects, offering a one-stop solution for multi-dimensional business needs.
• Flexible Matching: Beam energy can be freely adjusted between 14MeV and 20MeV, precisely matching the optimal energy parameters for different nuclide production, achieving excellence in both production efficiency and nuclide quality.
• Easy Expansion: Utilizes a modular design architecture, allowing beam energy to be flexibly upgraded according to business development pace. A single investment delivers long-term value appreciation, perfectly adapting to future business expansion needs.

Contact us Relevant Cases

Performance Advantages

LBT provides comprehensive integrated medical isotope production solutions for manufacturing various radioisotopes to support nuclear medicine diagnosis and treatment in oncology, cardiology, and neurology.

LB-20 supports the efficient production of the following isotopes:

Liquid/Gas Targets

  • F

    10Ci/2h

    18O (p,n) 18F

  • c

    3Ci/30min

    14N (p, α) 11C

  • N-13

    400mCi/20min

    16O(p,α)13N

  • GA-68

    150mCi

    68Zn(p,n)68Ga

Solid Targets

  • CU-64

    ≥1.5Ci/6h

    64Ni (p,n) 64Cu

  • Cu-61

    ≥200mCi/3h

    natZn(p,x)61Cu

  • GA-68

    ≥2.0Ci/h

    68Zn(p,n)68Ga

  • ZR-89

    ≥60mCi/3h

    89Y(p,n) 89Zr

  • I-124

    ≥15mCi/2h

    124Te(p,n)124I

  • Tc-99m

    ≥3.0Ci/6h

    100Mo(p,2n)99mTc

  • In-111

    ≥2.0Ci/12h

    111Cd(p,n)111In

  • Sc-44

    ≥1.2Ci/4h

    44Ca(p,n) 44Sc

Operational Stability & Workflow

Long-life, Plug-and-Play Cold Penning Ion Source

High ionization efficiency and beam injection efficiency, efficient, compact, and easy to maintain.

All-Solid-State RF Source

Stable and efficient, supports hot-swapping.

One-Button Startup & Equipment Control

Simple and easy to use, enabling efficient production.

AI-based Fully Automatic Parameter Tuning

Genetic algorithm efficiently tunes massive parameters, quickly finding optimal production conditions.

advantage (1)

＞18000 μAh

Service Life

advantage (2)

＜3.5 h

Replacement Time

advantage (3)

＞95%

Uptime

AI Powered-Workflow

AI Powered-Workflow

Autotuning Parameters

BLBT CustomizedPerformance Advantages

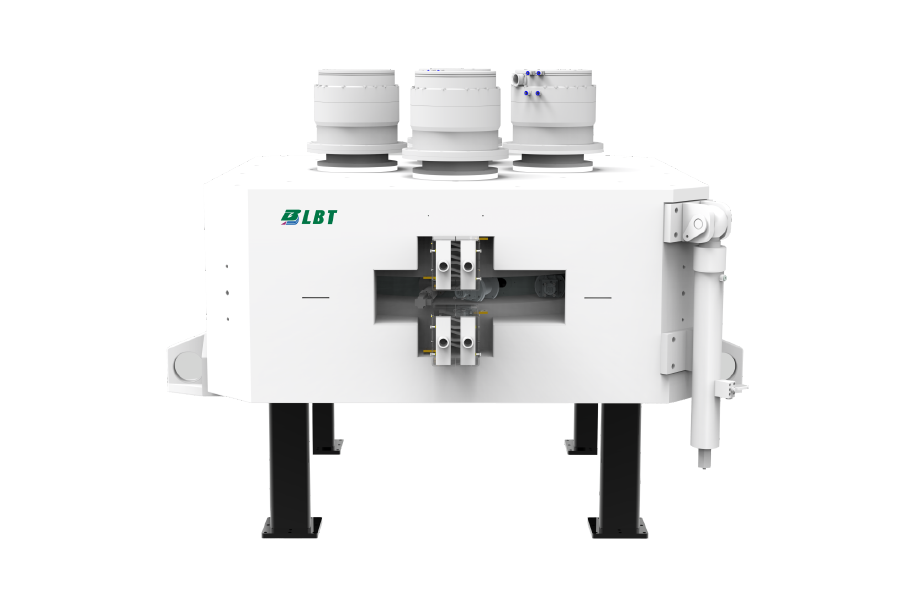

Cyclotron-LB-20
• Proton Beam Extraction Energy
14/20 MeV
• Maximum Beam Current
Upgradable to 180μA
• Number of Targets
1 Solid Target Position
7 Liquid/Gas Target Positions

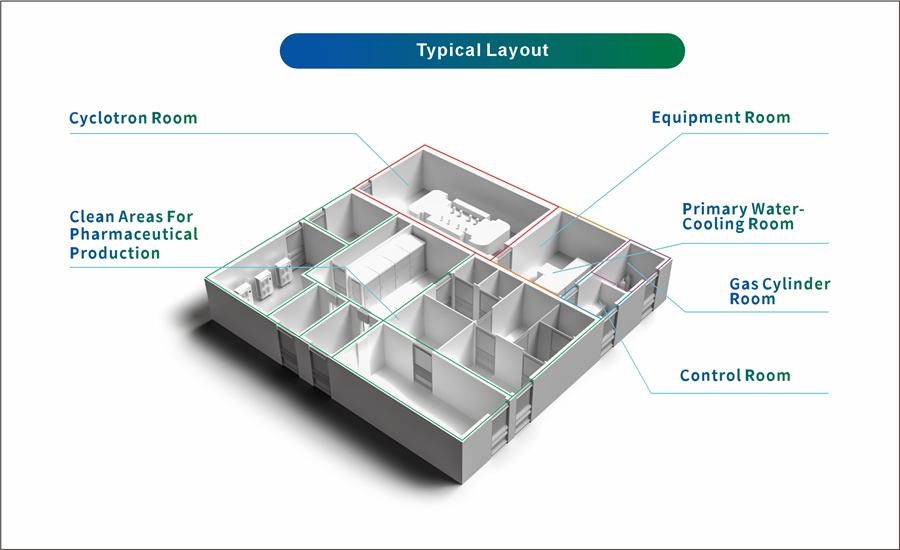

Typical Layout

LB-20 Typical Layout
  • service01

    Compact design, reducing initial site investment

    Compact design, reducing initial site investment
    Flexible design, tailored to clients' site requirements.

Scalable Design

• Low Initial Investment, Gradual Capacity Upgrade
Flexible beam current upgrade path, lower initial investment, reserves more space for future capacity expansion.
• Custom Energy Extraction Port for More Nuclide Production
Based on the standard 14/20MeV, an additional custom energy extraction port can be ordered to produce specific nuclides with higher yield and purity.
Cyclotron LB-20
10Ci
100uA
18Ci
180uA
