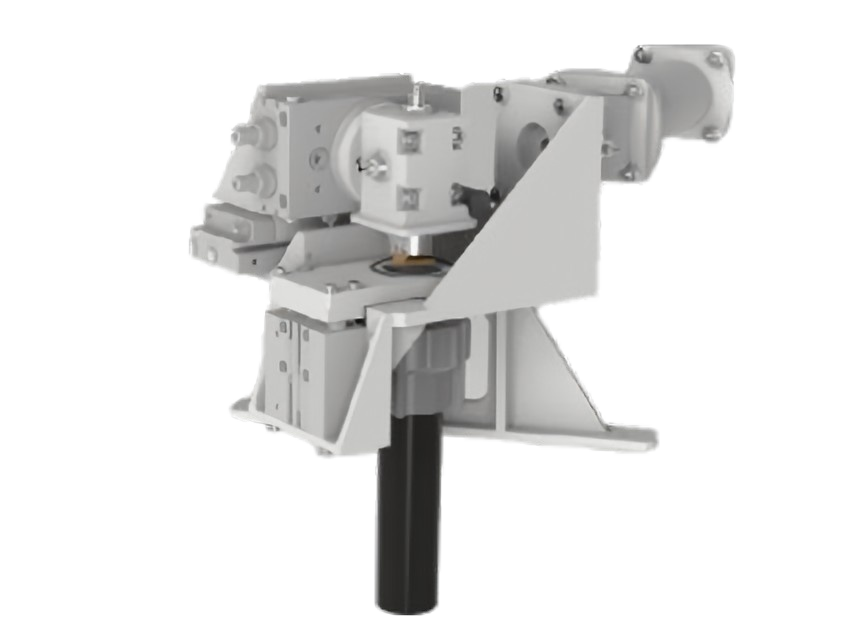

High Current Solid Target Station

Compatible Host Models
• LB-30

Operating current
• H-: 600 µA max

The production of high-value medical isotopes such as ⁶⁸Ge、²²⁵Ac and ⁶⁷Cu presents a significant technical challenge. These isotopes possess low reaction cross-sections, resulting in inherently low production efficiency. To meet the growing clinical and commercial demand for these critical radionuclides, high-power, high-current particle beams are essential. However, operating under such intense beam conditions places extreme thermal and mechanical stress on the target, demanding exceptional stability in the target fabrication process and a highly robust engineering design for the entire station.
LBT has developed the High Current Solid Target Station to directly address this challenge. Leveraging our extensive experience in solid target system development, this station is specifically engineered to handle high-current particle beams reliably. It is a fully automated, remotely operated, and robust system designed for the large-scale production of novel and established medical isotopes.

Target preparation

• Electroplating

• Melting

• High Pressure Pelletization

Automation

• The pre-loaded terminal sends and receives the “capsules” that transport the target between the target station and hot cell via pneumatic actuation

Target Materials & Reactions

⁶⁴Ni (p,n) ⁶⁴Cu
⁶⁸Zn(p,n)⁶⁸Ga
⁸⁹Y(p,n) ⁸⁹Zr
¹²⁴Te(p,n)¹²⁴I
¹⁰⁰Mo(p,2n)⁹⁹mTc
⁴⁴Ca(p,n) ⁴⁴Sc
^natZn(p,x)⁶¹Cu
¹¹²Cd(p,n)¹¹¹In

Target Materials & Reactions

^natGa(p,x)⁶⁸Ge
²⁰⁵Tl(p,x)²⁰³Pb
¹⁷⁶Yb(d,n)¹⁷⁷Lu
²²⁶Ra(p,2n)²²⁵Ac
⁷⁰Zn(p,α)⁶⁷Cu

Gas Target Station

LBT high-current gas target station enables the reliable and scalable production of ultra-pure ¹²³I. It utilizes the proven nuclear reaction of irradiating highly enriched ¹²⁴Xe with 30 MeV protons, to produce Curie level yields of ¹²³I while minimizing interfering impurities, ensuring superior image quality for precise diagnostic imaging.

Engineered to overcome the challenges of high beam currents and gaseous target handling, the station ensures maximum operational safety and process reliability. It features a fully automated workflow that integrates gas containment, precision irradiation, and efficient product recovery.

Compatible Host Models

LB-30
Operating current

150 µA max
Target materials & Reactions

¹²⁴Xe(p,2n¹²³Cs→¹²³Xe→¹²³I

Internal Target Station

While H^- beams are highly effective, the use of positive ion beams—such as D+ and He⁺⁺—unlocks access to a broader and more diverse range of medical and research isotopes. These beams enable nuclear reactions that protons cannot efficiently trigger, significantly expanding the portfolio of radionuclides available for applications in targeted therapy, diagnostic imaging, and scientific research.

Recognizing this potential, LBT has developed its specialized Internal Target Station for positive ion irradiation. The internal target configuration ensures optimal beam utilization and maximizes reaction efficiency, which is critical for achieving high yields of novel isotopes like ²¹¹At
