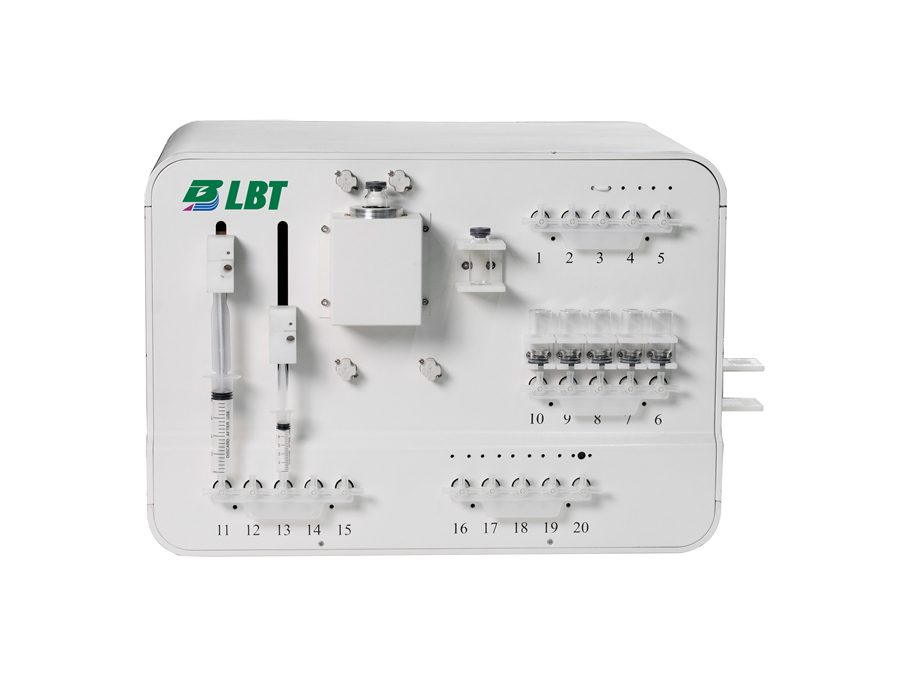

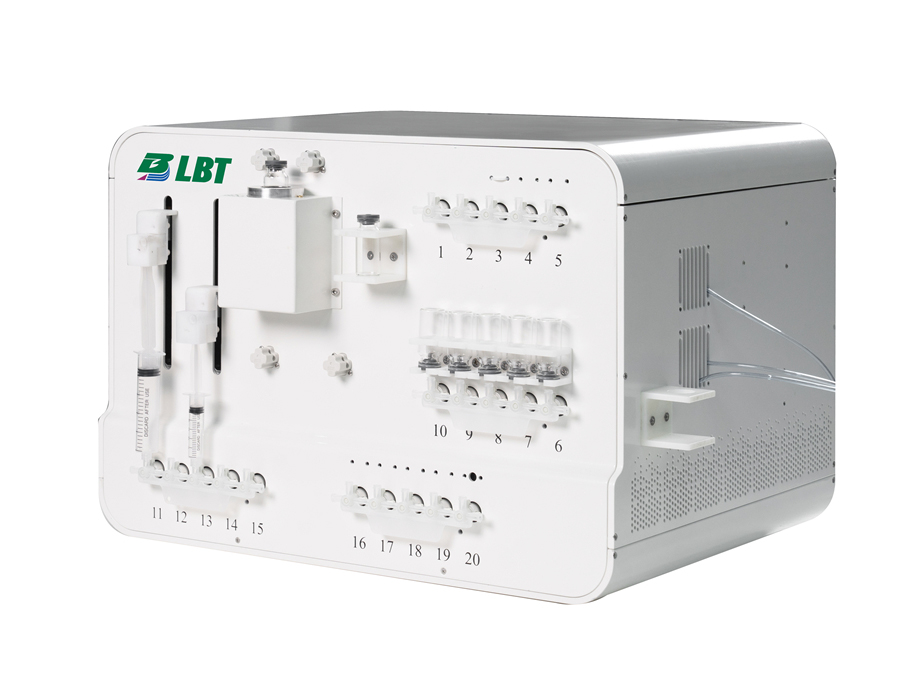

X-Tracer Synth-MNF 1.1
- Preparation of Multiple RadiopharmaceuticalsEfficient and safe
X-Tracer Synth-MNF1.1
Main Features
-
Safer
Pumps and valves in the device can be remotely controlled via the host computer to execute the synthesis process, avoiding radiation exposure to operators.
-
Smarter
User-customizable recipe management function allows creating and executing different recipes for different types of drugs, enabling automated synthesis of various radiopharmaceuticals.
-
More Convenient
The device features an independent pipeline design; consumables such as tubes, lines, and vials requiring periodic or batch-specific replacement are all externally mounted and utilize easy-to-replace structures like quick-connect, quick-lock, and barbed fittings.
-
More Professional
Equipped with nitrogen purge pipelines and vacuum equipment, effectively reducing synthesis time and minimizing nuclide activity loss during the process.
-
More Precise
The equipment's heating module is designed with a heating well for placing the reaction vial and is equipped with a temperature sensor for monitoring. The heating temperature range is from ambient temperature to 150°C, with a temperature control accuracy of ±2°C.
-
More Comprehensive
Features include permission, production data recording, data processing, printing, access control and permission assignment, login/logout, report printing, fault alarm and prompts, data storage backup & restoration, and import/export functions.
Radiopharmaceutical Types and Production Capacity
| FDG | Uncorrected Synthesis Efficiency | ≥55% |
| Radiochemical Purity | ≥95% | |
| Nuclear Purity | ≥99.8% | |
| Synthesis Time | ≤30min | |
| Number of Syntheses | 1st | |
| Reagent Installation Method | Cassette-based | |
| AlF-PSMA-11 | Uncorrected Synthesis Efficiency | 20%±5 |
| Radiochemical Purity | ≥95% | |
| Nuclear Purity | ≥99.8% | |
| Synthesis Time | ≤30min | |
| Number of Syntheses | 1st | |
| Reagent Installation Method | Cassette-based | |
| F-FAPI | Uncorrected Synthesis Efficiency | ＞15% |
| F-AV-1451(tau) | Uncorrected Synthesis Efficiency | ＞15% |
| F-AV-45(tau) | Uncorrected Synthesis Efficiency | ＞15% |
| 13NH3-H2O | Uncorrected Synthesis Efficiency | ＞50% |
